100A

Input Voltage

10-14 S

Continuous Current

80 A

Peak Current

100 A (10 Seconds)

PWM Frequency

50~400 Hz

PWM Pulse Width Range

1100 - 1940 μs

Operating Temperature Range

-20℃~80℃

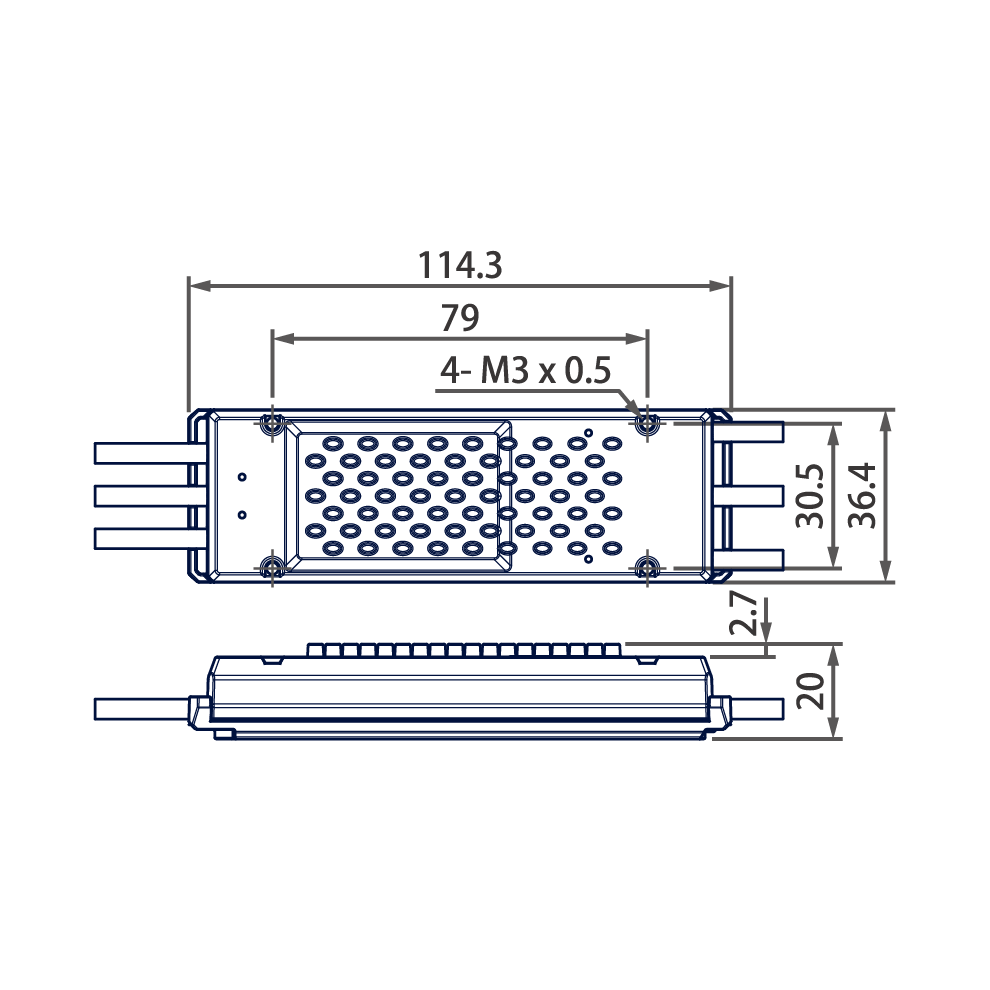

Dimensions

114.3*36.4*20 mm

Weight (without wires)

123 g
