Technical Specifications
10012
Motor
10012
Propeller
30*11"
Range
10–14 S
Thrust per Rotor
5–7 kg
ESC
100A
Propeller Locking
—
KV Rating（rpm/V）
120KV
Max. Thrust
16.8 kg
Max. Power
3500 W

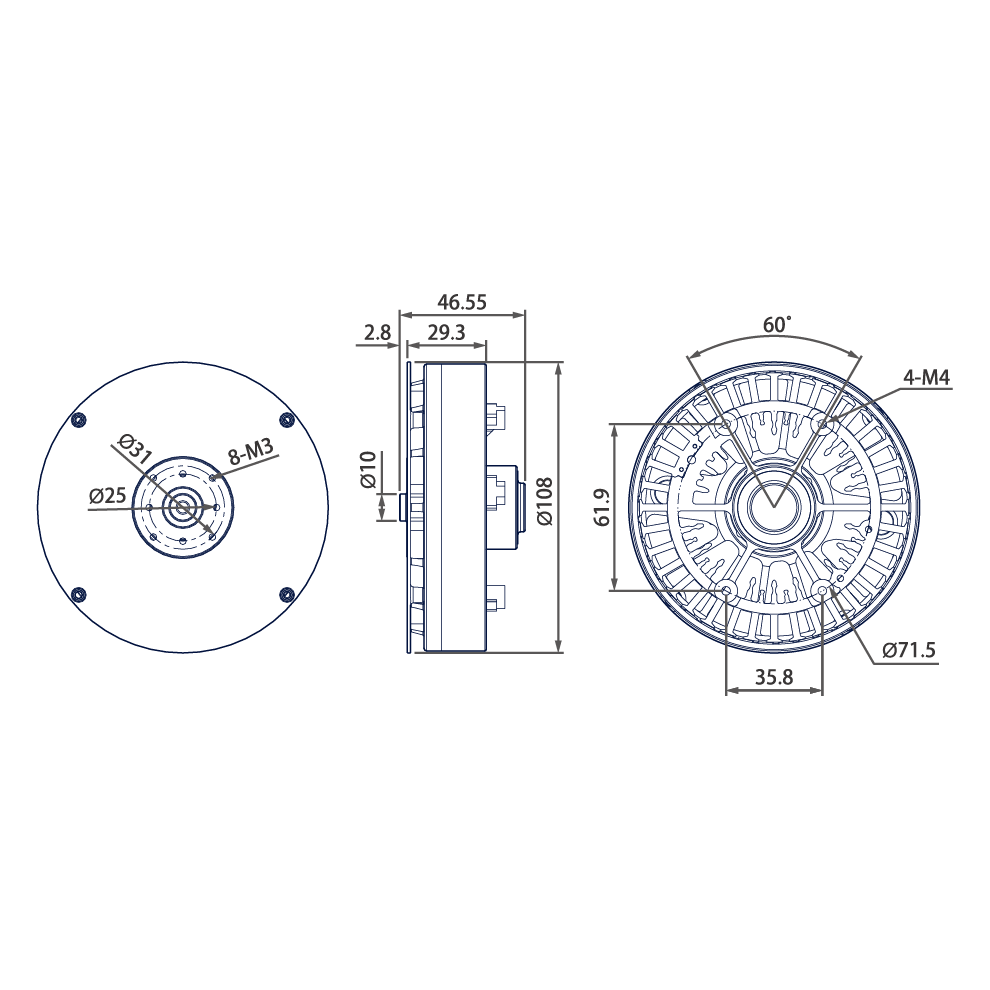

Overall Dimensions
108*45.2 mm
Weight
590 g
SHARE :
| 10012 – 100A Technical Parameters | |||||||
|---|---|---|---|---|---|---|---|
| Voltage (V) | Propeller | Throttle (%) | Thrust (kg) | Current (A) | Power (W) | Speed (RPM) | EFF (g/W) |
| 46V | 30*11'' Foldable Propeller | 10 | 0.10 | 0.24 | 11 | 168 | 9.1 |
| 20 | 0.78 | 1.12 | 52 | 684 | 15.1 | ||
| 30 | 2.21 | 3.43 | 157 | 1212 | 14.0 | ||
| 40 | 3.92 | 7.70 | 353 | 1752 | 11.1 | ||
| 50 | 6.13 | 14.34 | 655 | 2244 | 9.3 | ||
| 60 | 8.39 | 23.34 | 1062 | 2724 | 7.8 | ||
| 70 | 10.95 | 35.26 | 1597 | 3144 | 6.8 | ||
| 80 | 13.24 | 49.01 | 2210 | 3528 | 5.9 | ||
| 90 | 15.30 | 63.29 | 2835 | 3828 | 5.3 | ||
| 100 | 16.97 | 79.00 | 3516 | 4068 | 4.7 | ||
The above data is measured by changing the throttle input to adjust the tension under the environment of 20℃ and sea level.
