Technical Specifications
10018

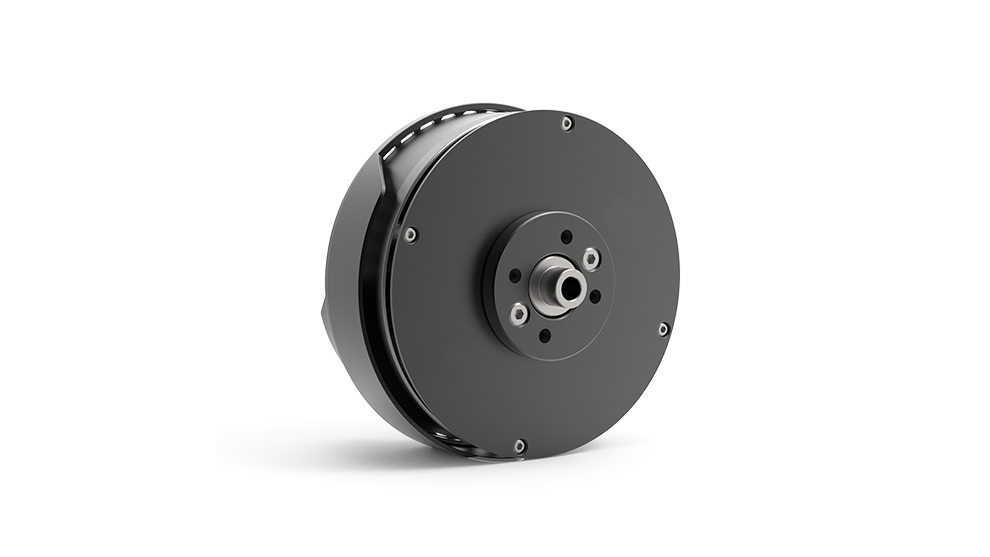

Motor
10018
Propeller
41*13"
Range
10–14 S
Thrust per Rotor
8–11 kg
ESC
100A
Propeller Locking
—
KV Rating（rpm/V）
77KV
Max. Thrust
22 kg
Max. Power
3700 W

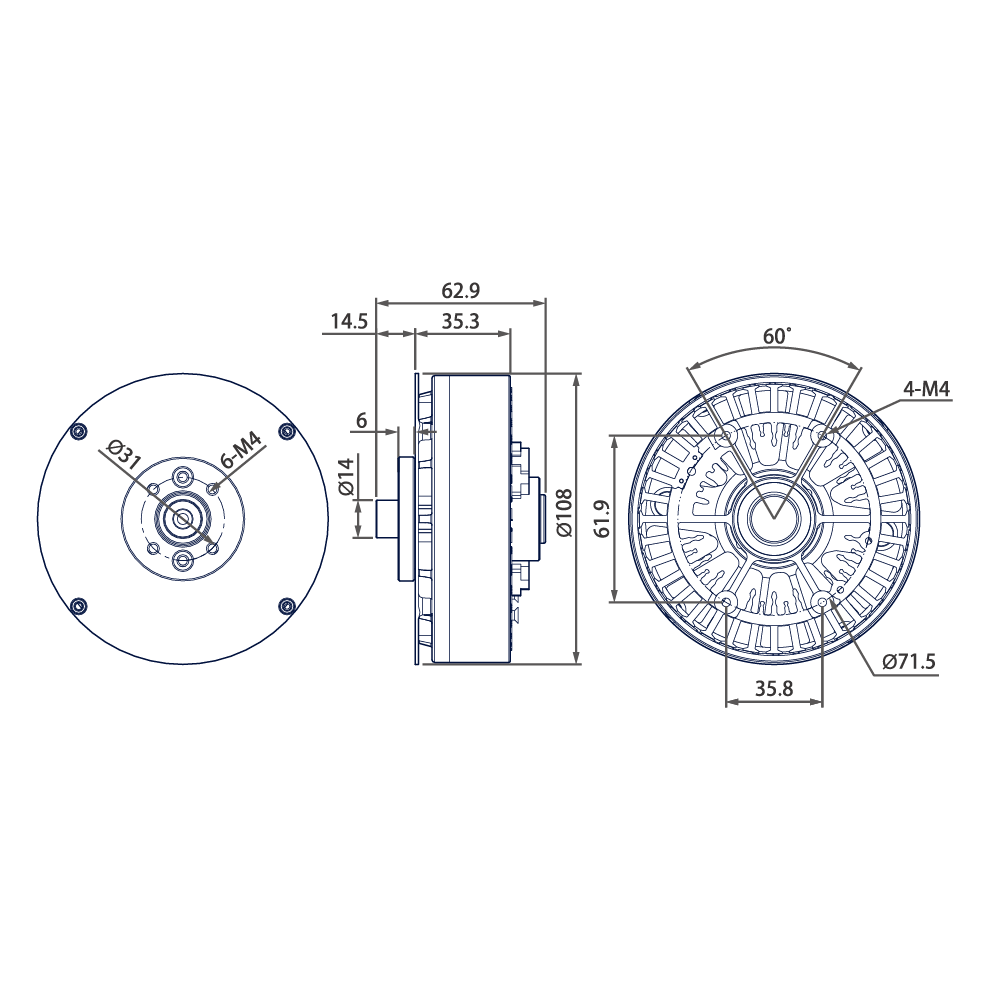

Overall Dimensions
108*63 mm
Weight
765 g
SHARE :
| 10018 – 100A Technical Parameters | |||||||
|---|---|---|---|---|---|---|---|
| Voltage (V) | Propeller | Throttle (%) | Thrust (kg) | Current (A) | Power (W) | Speed (RPM) | EFF (g/W) |
| 56V | 41*13'' Foldable Propeller | 10 | 0.66 | 0.63 | 41 | 300 | 18.7 |
| 20 | 2.26 | 2.36 | 132 | 816 | 17.1 | ||
| 30 | 3.92 | 4.88 | 273 | 1140 | 14.3 | ||
| 40 | 6.08 | 9.10 | 508 | 1488 | 11.9 | ||
| 50 | 8.51 | 15.10 | 841 | 1728 | 10.1 | ||
| 60 | 11.34 | 22.43 | 1247 | 2040 | 9.0 | ||
| 70 | 14.12 | 32.04 | 1775 | 2328 | 7.9 | ||
| 80 | 16.94 | 42.77 | 2361 | 2544 | 7.1 | ||
| 90 | 19.91 | 55.89 | 3068 | 2760 | 6.4 | ||
| 100 | 22.15 | 67.38 | 3686 | 2916 | 5.9 | ||
The above data is measured by changing the throttle input to adjust the tension under the environment of 20℃ and sea level.
