V160A

Input Voltage

10-14 S

Continuous Current

120 A

Peak Current

160 A (10 Seconds)

PWM Frequency

50~400 Hz

PWM Pulse Width Range

1100 - 2000 μs

Operating Temperature Range

-20℃~80℃

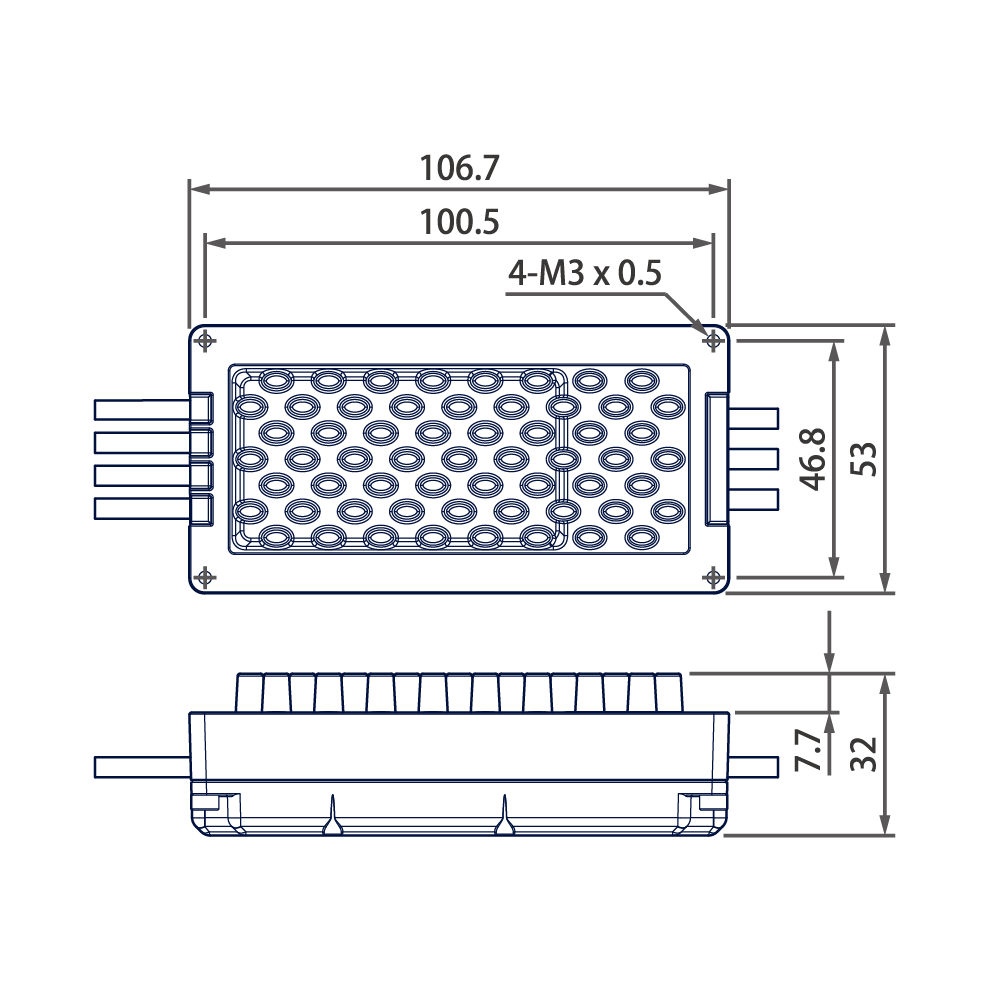

Dimensions

106.7*53*32 mm

Weight (without wires)

210 g
