Technical Specifications
V6115

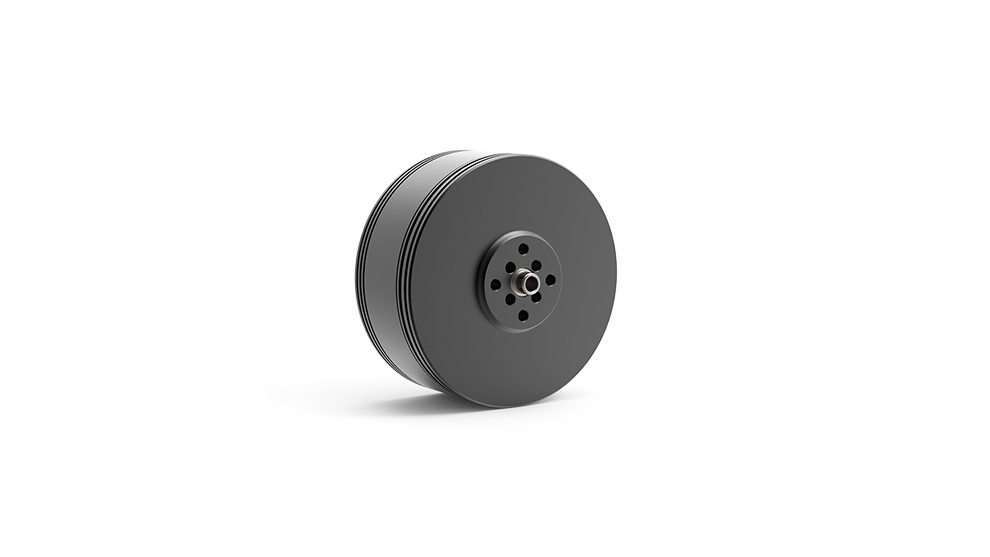

Motor
V6115
Propeller
22*7.4"
Range
12 S
Thrust per Rotor
4.5–6 kg
ESC
V100A
Propeller Locking
Yes
KV Rating（rpm/V）
210KV
Max. Thrust
12.9 kg
Max. Power
3200 W

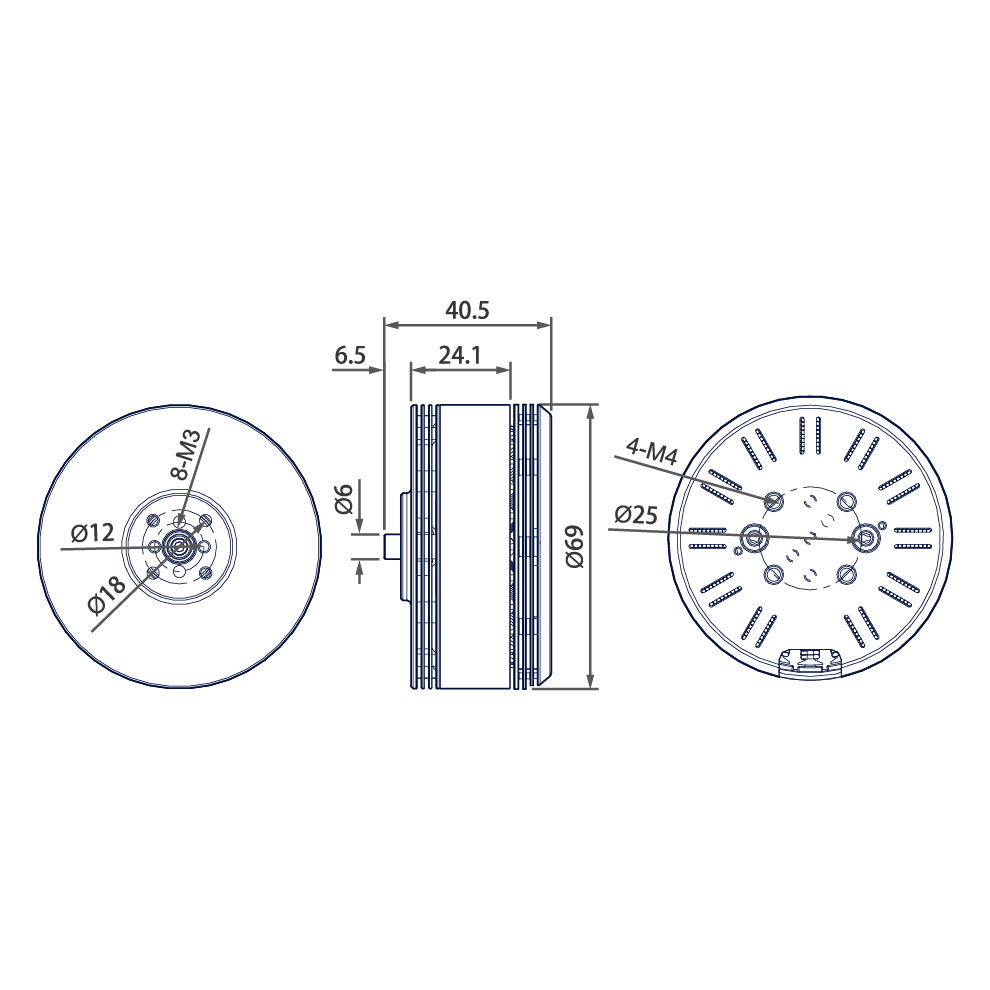

Overall Dimensions
69*40 mm
Weight
385 g
SHARE :
| V6115 – V100A Technical Parameters | |||||||
|---|---|---|---|---|---|---|---|
| Voltage (V) | Propeller | Throttle (%) | Thrust (kg) | Current (A) | Power (W) | Speed (RPM) | EFF (g/W) |
| 48V | 22*7.4'' | 10 | 0.25 | 1.00 | 48 | 900 | 5.21 |
| 20 | 1.32 | 2.96 | 142 | 1668 | 9.31 | ||
| 30 | 2.32 | 5.57 | 267 | 2580 | 8.70 | ||
| 40 | 3.52 | 9.22 | 441 | 3216 | 7.99 | ||
| 50 | 4.82 | 14.11 | 673 | 3900 | 7.16 | ||
| 60 | 6.48 | 20.87 | 993 | 4584 | 6.52 | ||
| 70 | 8.31 | 30.58 | 1449 | 5196 | 5.73 | ||
| 80 | 10.24 | 41.88 | 1977 | 5784 | 5.18 | ||
| 90 | 11.78 | 55.44 | 2600 | 6276 | 4.53 | ||
| 100 | 12.90 | 65.99 | 3088 | 6708 | 4.18 | ||
The above data is measured by changing the throttle input to adjust the tension under the environment of 20℃ and sea level.
