Technical Specifications

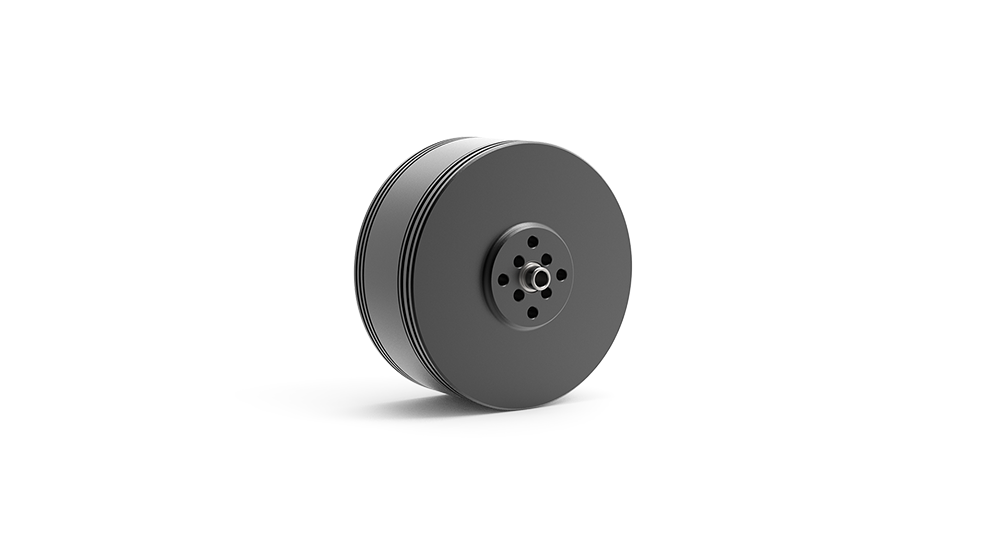

V8017
馬達
V8017
螺旋槳
27*8.8"
28*9.2"
29*9.5"
支援電壓範圍
12 S
每個旋翼推力
7.5–9 kg
電子調速器
V160A
螺旋槳鎖定
Yes
KV 值(rpm/V)
150KV
最大推力
20 kg
最大功率
5650 W

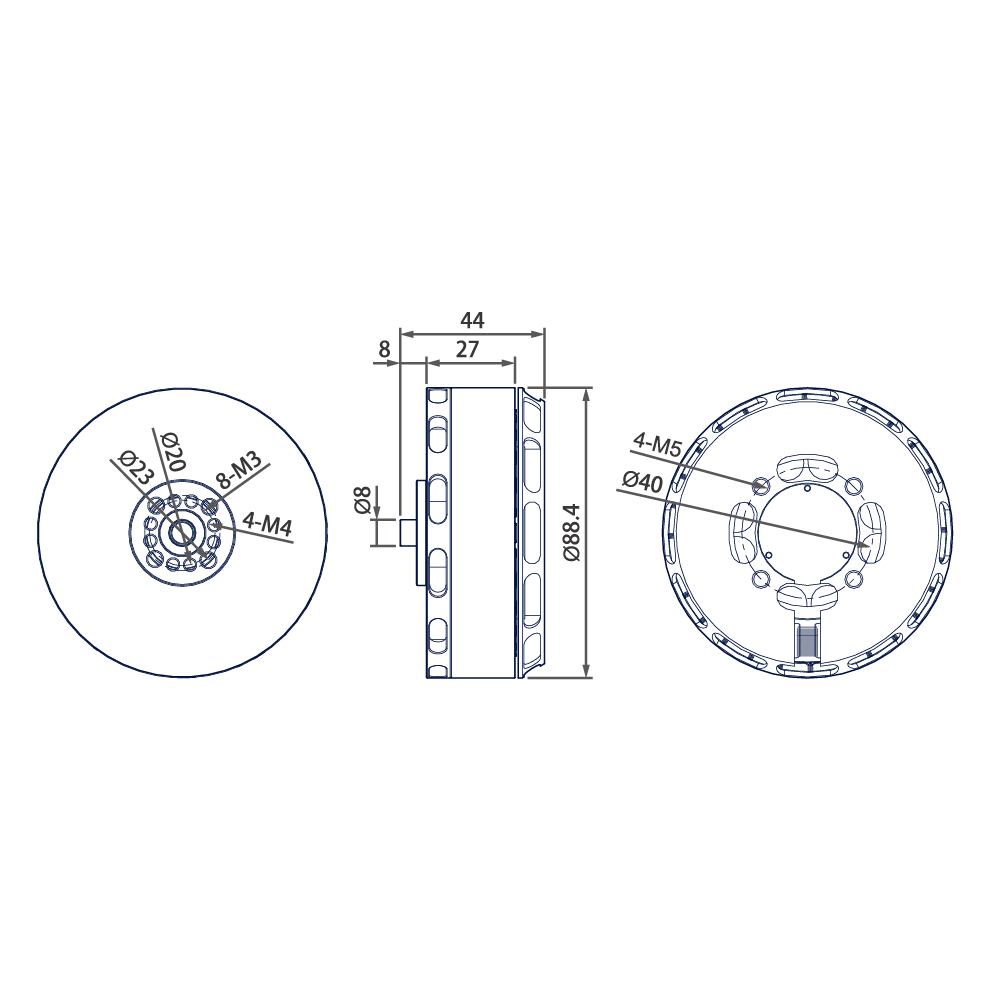

外觀尺寸
88.4*44 mm
重量
570 g
SHARE :
| V8017 – V160A Technical Parameters | |||||||
|---|---|---|---|---|---|---|---|
| Voltage (V) | Propeller | Throttle (%) | Thrust (kg) | Current (A) | Power (W) | Speed (RPM) | EFF (g/W) |
| 54V | 28*10'' | 30 | 1.81 | 2.94 | 158 | 1248 | 11.4 |
| 40 | 4.62 | 9.22 | 496 | 2136 | 9.3 | ||
| 50 | 7.33 | 18.50 | 992 | 2916 | 7.4 | ||
| 60 | 10.76 | 32.59 | 1737 | 3528 | 6.2 | ||
| 70 | 14.42 | 49.73 | 2636 | 4068 | 5.5 | ||
| 80 | 17.11 | 68.75 | 3616 | 4536 | 4.7 | ||
| 90 | 19.88 | 90.50 | 4715 | 4896 | 4.2 | ||
| 100 | 20.14 | 93.79 | 4886 | 5040 | 4.1 | ||
The above data is measured by changing the throttle input to adjust the tension under the environment of 20℃ and sea level.
