Technical Specifications

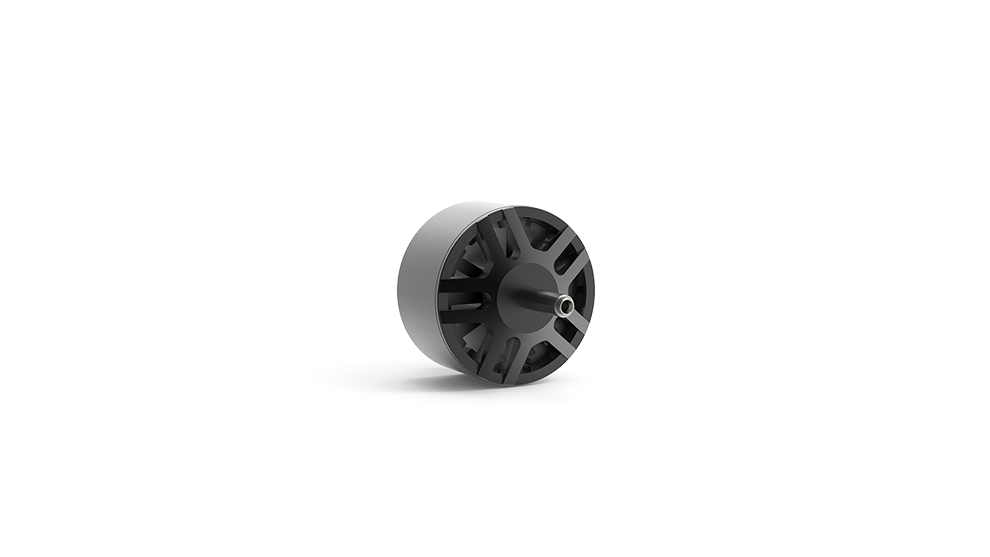

3517
馬達
3517
螺旋槳
12*6"
支援電壓範圍
6 S
每個旋翼推力
1.6–2.2 kg
電子調速器
80A 8S
螺旋槳鎖定
—
KV 值(rpm/V)
760KV
最大推力
4.8 kg
最大功率
1850 W

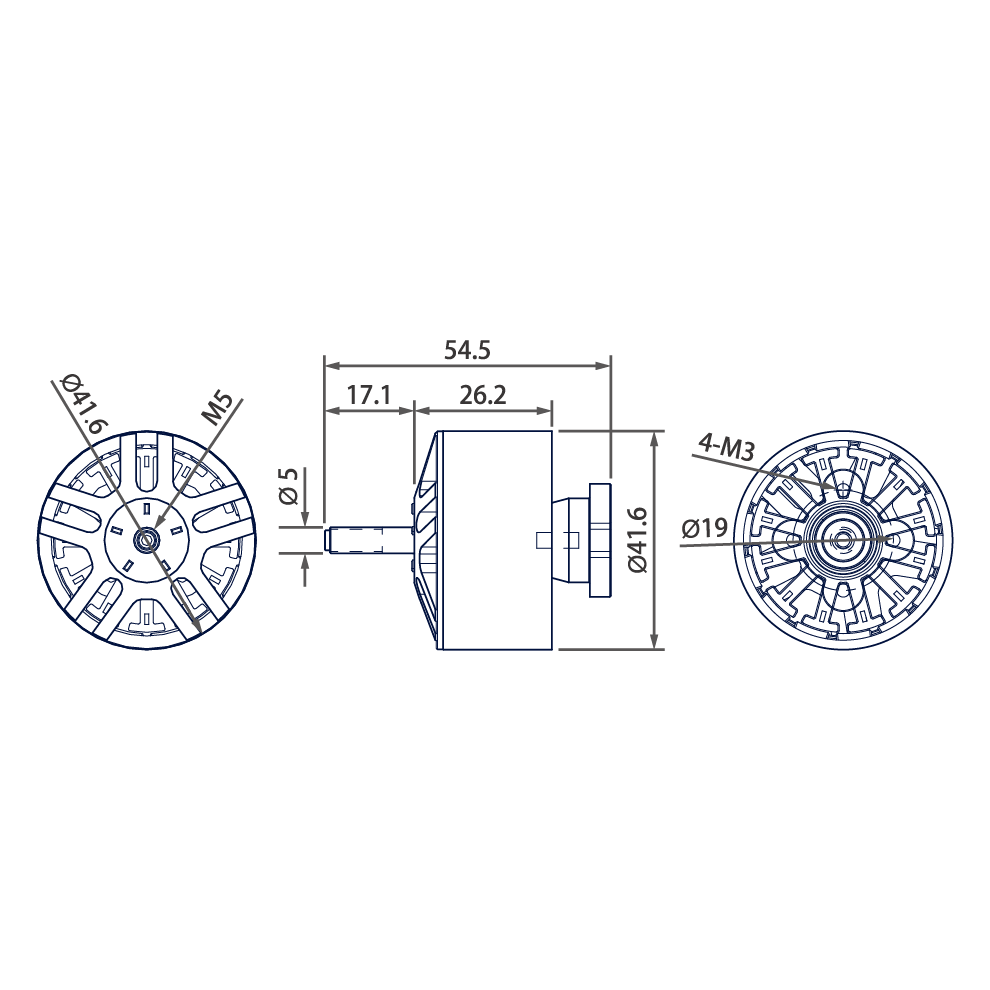

外觀尺寸
41.6*54 mm
重量
148 g
SHARE :
| 3517 – 80A 8S Technical Parameters | |||||||
|---|---|---|---|---|---|---|---|
| Voltage (V) | Propeller | Throttle (%) | Thrust (kg) | Current (A) | Power (W) | Speed (RPM) | EFF (g/W) |
| 24V | 12*6'' | 10 | 0.10 | 0.60 | 14 | 1764 | 6.9 |
| 20 | 0.28 | 1.83 | 44 | 3444 | 6.4 | ||
| 30 | 0.57 | 3.85 | 92 | 4776 | 6.2 | ||
| 40 | 0.99 | 7.04 | 168 | 6060 | 5.9 | ||
| 50 | 1.63 | 11.82 | 280 | 7272 | 5.7 | ||
| 60 | 2.26 | 18.79 | 443 | 8472 | 5.0 | ||
| 70 | 2.62 | 27.10 | 634 | 9588 | 4.0 | ||
| 80 | 3.35 | 36.76 | 853 | 10500 | 3.8 | ||
| 90 | 3.99 | 47.69 | 1097 | 11244 | 3.5 | ||
| 100 | 4.80 | 62.87 | 1427 | 11916 | 3.2 | ||
The above data is measured by changing the throttle input to adjust the tension under the environment of 20℃ and sea level.
